Hot Plate for 60℃ ◀▶250 for Industrial

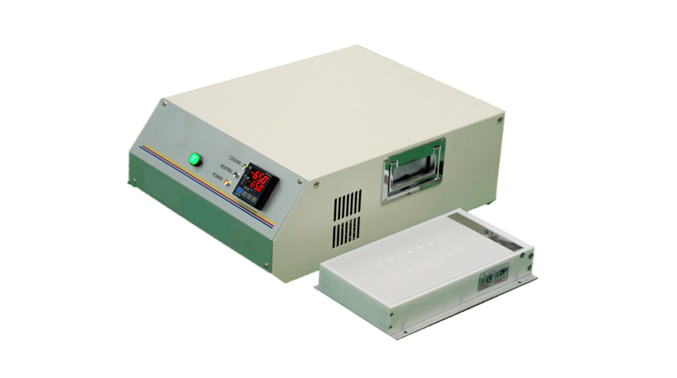

-65℃ ◀▶ 250 ℃ cooling heating plate

In general, the temperature that can be cooled by a thermoelectric element is about –15℃ for air cooling and –20℃ for water cooling. This device is a plate device capable of cooling, heating and constant temperature of -65℃ ◀▶ 150℃ through Futrotech's technology. Through additional options, it is possible to maintain a constant temperature of -75℃ ◀▶ 250℃ for cooling and heating.

Part Name. DESCRIPTION
FU –COLD PLATE-001
General Installation In and out door
Ambient temperature 20 ～ 25 Celsius(℃)
Ambient humidity 40 ～ 80 % RH
Power specifications  AC Free Volt
Adjustment range -65 ℃ ~ 125 ℃ (when adopting 30mm insulation)
Automatic temperature setting by interface Target temperature and temperature can be set by PC Provision of protocol if necessary
specifications Operation (EASY Handling) Manual Botton
By PC Program
Cooling capacity up to 1 K watt/sec
Heating ability up to 1.4 K watt/sec
Temperature precision ± 0.1 ℃
product composition Applied thermoelectric module high-efficiency anticorrosive coating (domestic patent) specifications HotExtrusion Specification for High Efficiency
Temperature Senser Selection according to customer requirements (PT100dOhm,K,T)
Cooling block Color Anodized AL 6061 Block
Chiller All-in-one thermal chiller
Detachable Thermal electric chiller or Freon compressor chiller
Memory heat conduction method Provided by us according to customer specifications
PC control program Provide our version
Others Time to reach temperature 25 ℃ ◀ ▶ -40 ℃ Within 10 minutes after operation
25 ℃ ◀ ▶ 100 ℃ Within 5 minutes after operation
100 ℃◀ ▶ -40 ℃ Within 15 minutes after operation
Safety device Power circuit overvoltage protection device
FUSE, Auto Stop Circuit Control Board wire connection
Wire connection Multi Connector
Temperature control Manual operation possible
PC control Possible (temperature data storage, output, review)/RS232C
Automatic temperature graph creation function monitor real time display
Temperature program control Possible, automatic temperature operation without operatorr
Unmanned automatic cycling operation optional
Body color Ivory, yellow
Product size and weight Socket 55 x 55 x 100 mm / 400 gram
Temp controller 250 x 90 x 355 mm / 4 Kg
External blood chiller 300 x 300 x 200 mm / 20 Kg
