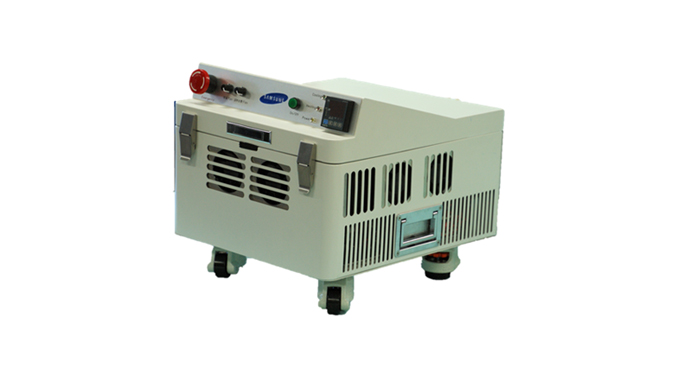

Small constant temperature room

It is a next-generation water-cooled structured system and ultra-compact constant-temperature chamber that can perform temperature tests from -40℃◀▶120℃. Product overview

Items Name of product Constant Temperature Control System
For Room With base Hot Plate ACE-707
Service Range Installation Place In Door
Range of ambinient Temperature 0 ℃ ～ 50 ℃
Range of ambinient humidity 40 % ～ 80 % RH
Electric Power 2 phase AC220V 50/60 Hz
Service media Air
Temperature Sensor Pt 100 Ω ( K type )
Temperature Range Base Plate -15 ℃ ～ 120 ℃
Room - 0 ℃ ～ 120 ℃
Capacity Cooling Capacity 1,584 Kwatt/hour
378.5 Kcal/hour
Inner Volume 22 Liter
Electric Specification Electric Consumption 300 watt
Control Circuit AC 220 volt
Protective devices Electric Power Circuit Over Voltage and Current damage protect circuit.
Thermoelectric Module Auto Shut.
Power Input Voltage AC 220 Volt
Operation Voltage TEC DC 24 Volt / 30 Amp
FAN DC 24 Volt
Temperature Control Target Temp Setting By hand, By PC system (Dual)
Temperature Accuracy +/- 0.1 ℃
By PC Program Temp. Graph Printing Possible by PC printer
Data memory Possible
Long Distance Control Possible By connector(232,485)
Speed Control Heating Possible for plate and room
Cooling
Temp. Setting
Holding Time Setting
Others External Dimension Width 586 mm
Depth 390 mm
Height 445 mm
Internal Dimension Width 360 mm
Depth 197 mm
Height 288 mm
Painting Color White
Mass of Product Only System 26.5 Kg
With packing Box 30.0 Kg
