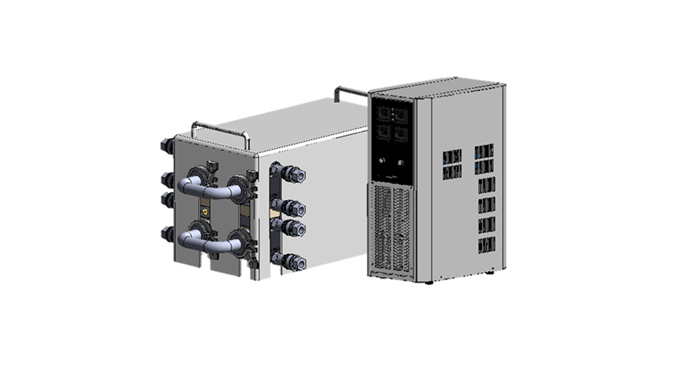

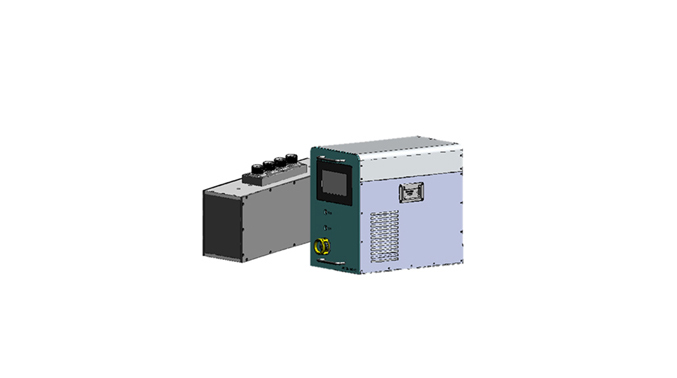

Dieses Produkt ist ein Gerät, das das Kühlmittel oder die chemische Lösung auf einer konstanten Temperatur hält. Es kann als Aufschlämmung für Batterien und als Vorrichtung zur Aufrechterhaltung der Reagenztemperatur während des Halbleitervorbehandlungsprozesses verwendet werden. Es hat eine große Kapazität und zeichnet sich durch eine schnelle Temperaturrealisierung und eine hohe Haltbarkeit aus.
Part Name. | DESCRIPTION | ||
---|---|---|---|
F U –CIR-001 A | |||
general resources | installation location | In and out door | |
Using temperature | 20 ~ 25 Celsius(℃) | ||
Using Humidity | 40 ~ 80 % RH | ||
power specifications | AC Free Volt | ||
Temperature Control range | 17 ℃ ~ 50 ℃ | ||
Automatic temperature setting by interface | temperature setting possible by PC | ||
Request for provision utility | coolant or chiller water | Use of process cooling water (below 22 ℃) | |
TEC cooling method | coolant temperature | 25℃ or less | |
coolant piping | 17 mm | ||
CDA | Apply as needed | Prevention of dehumidification in case of overcooling (apply if necessary) | |
Performance | cooling capacity | MAX. 1,123 watt/sec | |
heating ability | MIN. 1,728 watt/sec | ||
temperature precision | Maximum set temperature ± 0.1 ℃ | ||
Supply voltage/current | Free Volt / 220 V / 110 V/ 50 Hz/ 60 Hz | ||
time to temperature | 30 ℃ ◀ ▶ 23 ℃ | 5 minutes/after commissioning Immediately upon input of slurry | |
Coolant temperature: 20℃ | Reagent temperature as low as 18℃ | ||
Ease of use | Fastening method | How to connect each unit | Easy quick connector connection (automatic pressure when fastening) |
wash | Straight pipe structure, connector detachable type | Detachable parts for easy cleaning | |
temperature control | PC UI provided | Provide our version | |
Individual temperature control for each unit | possible | ||
Handles are mounted on individual units | 4 units batch control possible | ||
temperature data | Screen measurement and Excel download available | ||
mobility | Mounting bracket after assembling 4 units | 31.34 Kg ( 1 Unit : 7.835 Kg ) | |
Mounting the lower wheel of the mounting bracket | 4 PCS | ||
Others | safety device | power circuit | overvoltage protection device |
FLOW switch: Automatic power off when cooling water is not supplied | |||
Bimetal: Prevention of excessive rise by each block | |||
Automatically shuts off when the set temperature is not reached for 5 minutes | |||
Fuse, Auto Stop Circuit Control Board | |||
wire connection | Multi Connector | ||
Product size and weight | Cooling module size | 530 mm x 180 mm x 217 mm | |
Cooling module weight | 31.3 Kg | ||
controller size | 250 x 500 x 355 mm | ||
controller weight | 40 Kg | ||
body color | Ivory, yellow |
