冷却用热元件循环测试仪
用于制冷和制热热电模块耐久性测试和检查的循环测试仪
Bi2Te3金属广泛应用于热电材料中，是热电器件的核心材料，在空气中具有极强的氧化性。 特别适用于现有区域熔炼工艺生产的金属。 内部金属的强度很弱。 在根据自身用途切割由条形锭生产的热电金属时，内部金属受到的机械冲击可能会在使用过程中造成缺陷。 验证热电元件耐久性的系统有多种，但常用的方法是通过循环测试对热电元件施加电击和热冲击来验证耐久性。
我们热电模块的循环测试验证
循环测试方法

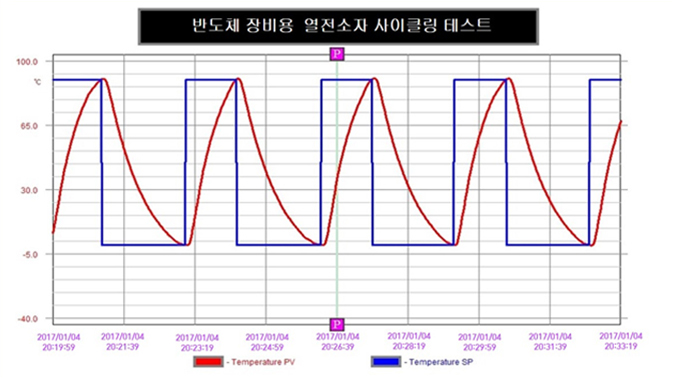

对于冷热电元件，将温度传感器放置在装有热电元件的冷却装置上，以测量耐久性。 通过将热电元件的温度从 0℃ 到 90℃ 再到 0℃ 作为一个周期变化，您可以连续进行与贵公司标准次数一样多的循环测试。.
耐力认证条件。
- 循环时间：热电元件应正常运行至贵公司的标准循环次数。

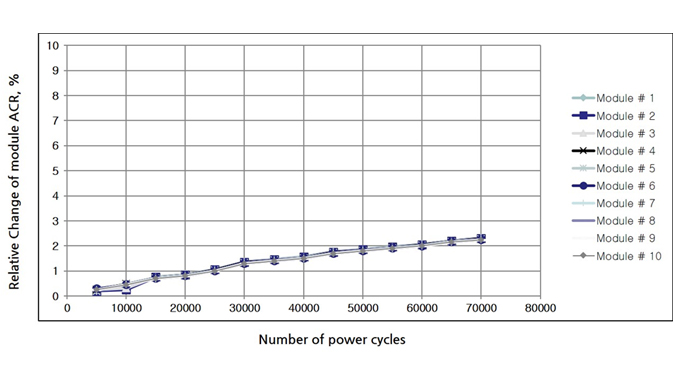

- 当循环测试后测量热电元件的电阻时
- 如果热电元件的电阻变化在初始电阻测量值的 +/- 10% 范围内
我们的热电元件循环测试仪的优势。
- 它被设计用于各种热电元件的电压和电流。
- 我们的系统0℃~90℃~0℃循环测试需要25天，而国外公司需要120天。
| Part Name. | T MS CYCL-001A | ||
|---|---|---|---|
| General | Installation | In and out door | |
| Ambient temperature | 20 ～ 25 Celsius(℃) | ||
| Ambient humidity | 40 to 80% R.H. | ||
| Power specifications | AC Free Volt | ||
| Adjustment range | -65 ℃ ~ 250 ℃ (when adopting 30mm insulation) | ||
| Automatic temperature setting by interface | Target temperature and temperature can be set by PC Provision of protocol if necessary | ||
| specifications | Operation (EASY Handling) | Manual Botton | |
| By PC Program | |||
| Cooling capacity | up to 1 K watt/sec | ||
| Heating ability | up to 1.4 K watt/sec | ||
| Temperature precision | ± 0.1 ℃ | ||
| product composition | Applied thermoelectric module | high-efficiency anticorrosive coating (domestic patent) specifications HotExtrusion Specification for High Efficiency | |
| Temperature Senser | Selection according to customer requirements (PT100dOhm,K,T) | ||
| Cooling block | Color Anodized AL 6061 Block | ||
| Chiller | All-in-one | thermal chiller | |
| Detachable | Thermal electric chiller or Freon compressor chiller | ||
| Memory heat conduction method | Provided by us according to customer specifications | ||
| Others | PC control program | Provide our version | |
| Safety device | Power circuit | overvoltage protection device | |
| FUSE, Auto Stop Circuit Control Board wire connection | |||
| Wire connection | Multi Connector | ||
| Temperature control | Manual operation | possible | |
| PC control | Possible (temperature data storage, output, review)/RS232C | ||
| Automatic temperature graph creation function | monitor real time display | ||
| Temperature program control | Possible, automatic temperature operation without operator | ||
| Unmanned automatic cycling operation | optional | ||
| ody color | Ivory, yellow | ||
| Product size and weight | Temp controller | 250 x 90 x 355 mm / 4 Kg | |
| External blood chiller | 300 x 300 x 200 mm / 20 Kg | ||
