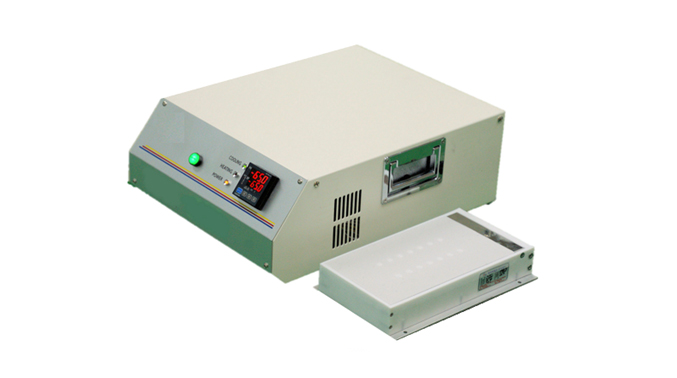

-60℃ ◀▶250 冷却、加热板

-65℃ ◀▶ 250 ℃ 냉각 가열 플레이트

一般情况下，热电元件可降温的温度，风冷约为–15℃，水冷约为–20℃。 本装置是通过Futrotech技术实现-65℃ ◀▶ 150℃制冷、制热和恒温的板式装置。 通过附加选项，可以保持 -75℃ ◀▶ 250℃ 的恒定温度进行冷却和加热。

产品规格

去。 产品组成
  • 冷却板
  • 自动温度控制器
  • 冷却器
  • 个人电脑用户界面
Part Name. DESCRIPTION
FU - CPW -065
General Installation In and out door
Ambient temperature 20 ～ 25 Celsius(℃)
Ambient humidity 40 ～ 80 % RH
Power specifications  AC Free Volt
Adjustment range -65 ℃ ~ 125 ℃
Automatic temperature setting by interface Target temperature and temperature can be set by PC Provision of protocol if necessary
specifications Operation(EASY Handling) Manual Botton
By PC Program
Cooling capacity up to 1 K watt/sec
Heating ability up to 1.4 K watt/sec
Temperature precision ±  0.1 ℃
product composition Applied thermoelectric module high-efficiency anticorrosive coating (domestic patent) specifications HotExtrusion Specification for High Efficiency
Temperature Senser Selection according to customer requirements (PT100dOhm,K,T)
Cooling block Color Anodized AL 6061 Block
Chiller All-in-one thermal chiller
Detachable Provided by us according to customer specifications
Memory heat conduction method Provided by us according to customer specifications
PC control program Provide our version
Others Time to reach temperature 25 ℃ ◀ ▶ -65 ℃ Within 10 minutes after operation
25 ℃ ◀ ▶ 100 ℃ Within 5 minutes after operation
100 ℃ ◀ ▶ -65 ℃ Within 15 minutes after operation
Safety device Power circuit overvoltage protection device
FUSE, Auto Stop Circuit Control Board wire connection
Wire connection Multi Connector
Temperature control Manual operation possible
PC control Possible (temperature data storage, output, review)/RS232C
Automatic temperature graph creation function monitor real time display
Temperature program control Possible, automatic temperature operation without operator
Unmanned automatic cycling operation optional
Body color Ivory, yellow
Product size and weight Socket 140 x 200 x 50 mm / 1.2K gram
Temp controller 250 x 90 x 355 mm / 4 Kg
External blood chiller 300 x 300 x 200 mm / 20 Kg
