插座风冷水冷-60℃温度测试设备

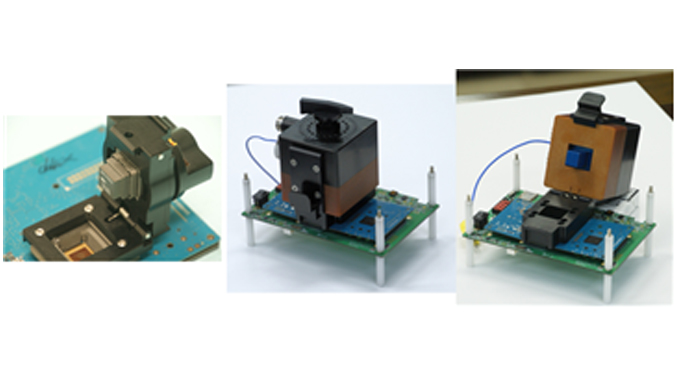

-60℃ ◀▶ 150℃ 插座温度测试测试设备（专利注册） )

本产品主要是在半导体生产现场对D Ram、NAND Flash Memory等半导体存储器进行温度测试检测过程中的1通道或16通道以下的温度测试检测设备。 为了通过准确施加球压来理想地实施内存测试， ①. 旋转旋转法和②． 提供两种变体，结合合适的压力自动加载装置。 本产品通过专利注册受知识产权保护。

Various Kinds of memory Socket Temperature testers
Part Name. DESCRIPTION
F U –CIR-001 A
General Installation In and out door
Ambient temperature 20 ～ 25 Celsius(℃)
Ambient humidity 40 ～ 80 % RH
Power specifications AC Free Volt
Adjustment range -40 ℃ ~ 100 ℃ (when adopting 30mm insulation)
Automatic temperature setting by interface Target temperature and temperature can be set by PC Provision of protocol if necessary
specifications Operation(EASY Handling) Manual Botton
By PC Program
Cooling capacity up to 100 watt/sec
Heating ability up to 200 watt/sec
Temperature precision ± 0.1 ℃
product composition Applied thermoelectric module high-efficiency anticorrosive coating (domestic patent) specifications HotExtrusion Specification for High Efficiency
Temperature Senser Selection according to customer requirements (PT100dOhm,K,T)
Cooling block Color Anodized AL 6061 Block
Chiller All-in-one thermal chiller
Detachable Thermal electric chiller or Freon compressor chiller
Memory heat conduction method Provided by us according to customer specifications
PC control program Provide our version
Others Time to reach temperature 25 ℃ ◀ ▶ -40 ℃ Within 10 minutes after operation
25 ℃ ◀ ▶ 100 ℃ Within 5 minutes after operation
100 ℃◀ ▶ -40 ℃ Within 15 minutes after operation
Safety device Power circuit overvoltage protection device
FUSE, Auto Stop Circuit Control Board wire connection
Wire connection Multi Connector
Temperature control Manual operation possible
PC control Possible (temperature data storage, output, review)/RS232C
Automatic temperature graph creation function monitor real time display
Temperature program control Possible, automatic temperature operation without operator
Unmanned automatic cycling operation optional
Body color Ivory, yellow
Product size and weight Socket 40 x 40 x 40 mm / 500 gram
Temp controller 250 x 90 x 355 mm / 4 Kg
Internal blood chiller
External blood chiller 300 x 300 x 200 mm / 20 Kg
