本产品采用高效热电元件,提供工业现场所需的大量冷风。 它是下一代空气供应器可显着改善使用涡流管时的空气压力损失量, 实现紧凑的安装区域和精确的温度。 高效冷却系统,自动温控系统。
Part Name. | DESCRIPTION | REMARKS | |||
---|---|---|---|---|---|

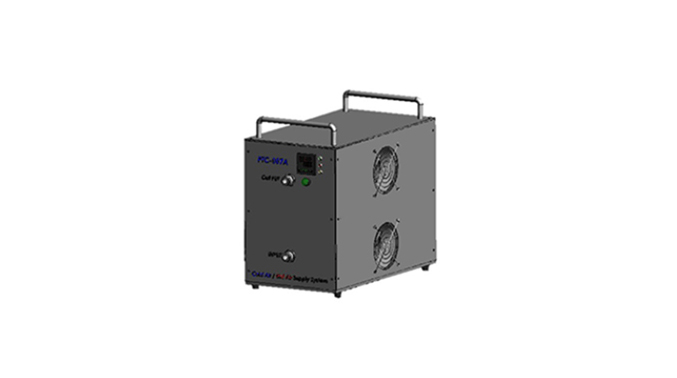

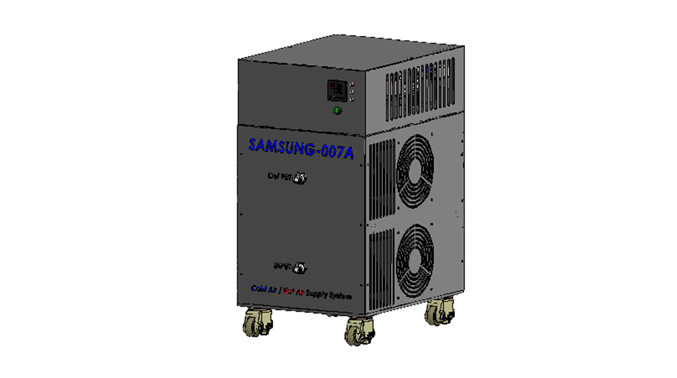

FUTURO-AS-001A | FUTURO-WS-001A | ||||
DETAILS | Air-cooled cooling pneumatic supply system | Water cooled pneumatic supply system | |||
needs | No utilities required | External coolant required | 10 LPM | ||
GENERAL | installation | In and out door | |||
ambient temperature | 20 ~ 25 Celsius(℃) | ||||
ambient humidity | 40 ~ 80 % RH | ||||
power specifications | AC Free Volt | ||||
temperature range | -20℃ ~ 80 ℃ | -10℃ ~ 80 ℃ | 10 LPM | ||
SPECIFICATION | How it works(EASYHandling) | FULL AUTOMATIC Manual setting possible ( Manual Button ) | |||
cooling capacity | 100 ~ 0.7 Kwatt/sec | 100 ~ 1 Kwatt/sec | |||
heating ability | 140 ~ 1.0 Kwatt/sec | 140 ~ 1.4 Kwatt/sec | |||
temperature precision | General | ± 2 ℃ | ± 1 ℃ | ||
When option is applied | (±0.1℃) | (±0.1℃) | |||
Supply cool air volume | 200 LPM ~ 600 LPM | ||||
Thermoelectric MODULE Specifications | High-efficiency anticorrosive coating (domestic patent) specifications | ||||
TIME | 25℃ ◀▶-20℃ | Within 10 minutes | Within 5 minutes | ||
25℃ ◀▶ 80℃ | Within 5 minutes | Within 3 minutes | |||
80℃◀▶ -20℃ | Within 15 minutes | Within 7 minutes | |||
safety Device | power circuit | overvoltage protection device | |||
FUSE, Auto Stop Circuit Control Board | |||||
wire connection | Multi Connector | ||||
DISPLAY | current temperature | Upper Number | |||
target temperature | Down Number | ||||
TEMP control | manual operation | possible | |||
communication | Rs232, 422, 485 | ||||
UI | Our standard version available | ||||
body color | Ivory, yellow | ||||
Product size and weight | 340 x 700 x 450 mm / 25 Kg (changeable) |
