TEG Engine test Equipment for engine power generation

Use of the product

Since the temperature of the high-temperature part in various sites may be different, Verification of the output of the power generation device, efficiency improvement, maximum power generation while using with the previously purchased electronic load It is an inspection device for verification.

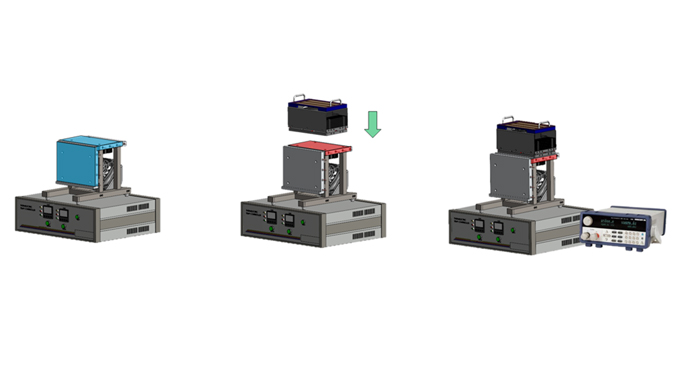

How to measure

ⓐ If the hot part is on the side
ⓑ If the hot part is up
Items Details 비 고
How to implement the temperature of the hot part Temperature control with a total of 2,000 watt AC heaters
highest temperature 400 ℃
temperature realization rate Max 1℃/second
temperature Senser Pt 100 Ohm
high temperature part material CR steel plate, surface coating
maximum operation power AC 220V / 10 A
controller outer case 19 inch rack
size 400 x 350 x 340 mm
weight 20 Kg
