Circulator for f semiconductor chemical reagents

Circulator for Chemistry and Semi Conductor

This product is a device that maintains the coolant or chemical solution at a constant temperature. It can be used as a slurry for batteries and as a reagent temperature maintenance device during semiconductor pre treatment process. It has a large capacity and boasts a fast temperature realization and high durability.

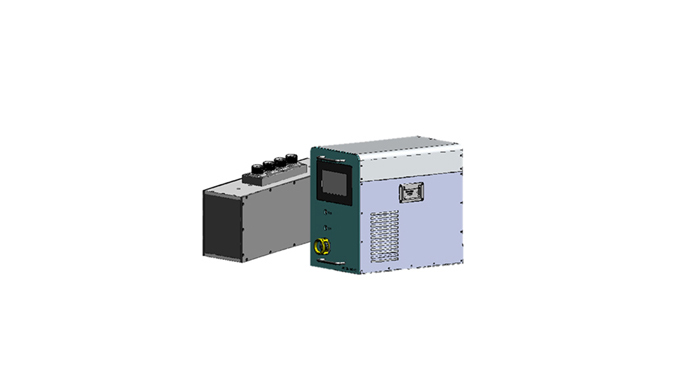

Market circulators

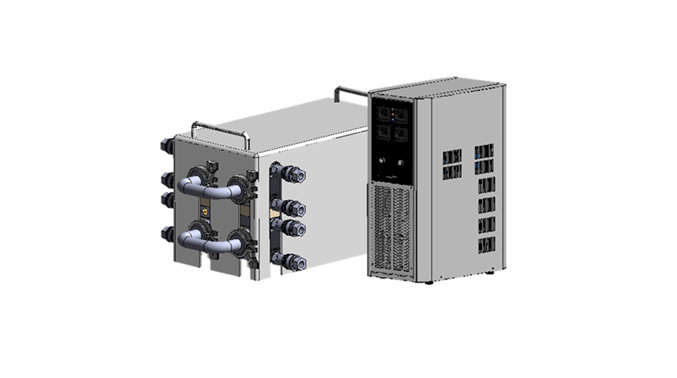

Futurotech circulators
Part Name. DESCRIPTION
F U –CIR-001 A
general resources installation location In and out door
Using temperature 20 ～ 25 Celsius(℃)
Using Humidity 40 ～ 80 % RH
power specifications AC Free Volt
Temperature Control range 17 ℃ ~ 50 ℃
Automatic temperature setting by interface temperature setting possible by PC
Request for provision utility coolant or chiller water Use of process cooling water (below 22 ℃)
TEC cooling method coolant temperature 25℃ or less
coolant piping 17 mm
CDA Apply as needed Prevention of dehumidification in case of overcooling (apply if necessary)
Performance cooling capacity MAX. 1,123 watt/sec
heating ability MIN. 1,728 watt/sec
temperature precision Maximum set temperature ± 0.1 ℃
Supply voltage/current Free Volt / 220 V / 110 V/ 50 Hz/ 60 Hz
time to temperature 30 ℃ ◀ ▶ 23 ℃ 5 minutes/after commissioning Immediately upon input of slurry
Coolant temperature: 20℃ Reagent temperature as low as 18℃
Ease of use Fastening method How to connect each unit Easy quick connector connection (automatic pressure when fastening)
wash Straight pipe structure, connector detachable type Detachable parts for easy cleaning
temperature control PC UI provided Provide our version
Individual temperature control for each unit possible
Handles are mounted on individual units 4 units batch control possible
temperature data Screen measurement and Excel download available
mobility Mounting bracket after assembling 4 units 31.34 Kg ( 1 Unit : 7.835 Kg )
Mounting the lower wheel of the mounting bracket 4 PCS
Others safety device power circuit overvoltage protection device
FLOW switch: Automatic power off when cooling water is not supplied
Bimetal: Prevention of excessive rise by each block
Automatically shuts off when the set temperature is not reached for 5 minutes
Fuse, Auto Stop Circuit Control Board
wire connection Multi Connector
Product size and weight Cooling module size 530 mm x 180 mm x 217 mm
Cooling module weight 31.3 Kg
controller size 250 x 500 x 355 mm
controller weight 40 Kg
body color Ivory, yellow
