Ultra-compact cold air supply

Cold and Hot air supply system. (Industrial site cold and hot pneumatic wind supply system)

This product uses a high-efficiency thermoelectric element to supply a large amount of cold air required at industrial sites. It is a next-generation air supplier that dramatically improves the amount of air pressure loss when using a vortex tube, realizing a compact installation area and accurate temperature. and high-efficiency cooling system with automatic temperature control system.

Advantages of our temperature controller
  • tiny size
  • Excellent cooling and heating effect
  • Accurate temperature control system and high durability

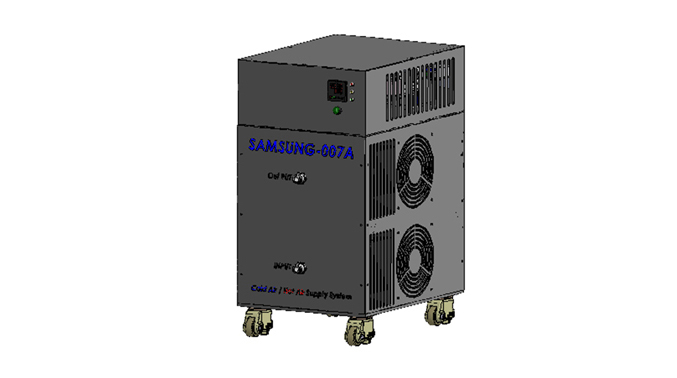

(Water-cooled (cooling water supply) Low-temperature pneumatic generator)

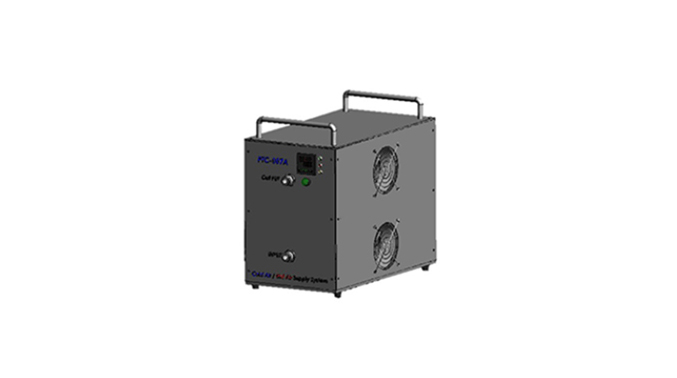

(Air-cooled (no cooling water required) Low-temperature pneumatic generator)
Part Name. DESCRIPTION 비 고
FUTURO-AS-001A FUTURO-WS-001A
DETAILS Air-cooled cooling pneumatic supply system Water cooled pneumatic supply system
needs No utilities required External coolant required 10LPM
GENERAL installation In and out door
ambient temperature 20 ～ 25 Celsius(℃)
ambient humidity 40 ～ 80 % RH
power specifications AC Free Volt
temperature range -20℃ ~ 80 ℃ -10℃ ~ 80 ℃ 10 LPM
SPECIFICATION How it works (EASYHandling) FULL AUTOMATIC Manual setting possible ( Manual Button )
cooling capacity 100 ~ 0.7 Kwatt/sec 100 ~ 1 Kwatt/sec
heating ability 140 ~ 1.0 Kwatt/sec 140 ~ 1.4 Kwatt/sec
temperature precision General ± 2 ℃ ± 1 ℃
When option is applied (±0.1℃) (±0.1℃)
Supply cool air volume 200 LPM ~ 600 LPM
Thermoelectric MODULE Specifications High-efficiency anticorrosive coating (domestic patent) specifications
TIME 25℃ ◀▶-20℃ Within 10 minutes Within 5 minutes
25℃ ◀▶ 80℃ Within 5 minutes Within 3 minutes
80℃◀▶ -20℃ Within 15 minutes Within 7 minutes
safety Device power circuit overvoltage protection device
FUSE, Auto Stop Circuit Control Board
wire connection Multi Connector
DISPLAY current temperature Upper Number
target temperature Down Number
TEMP control manual operation possible
communication Rs232, 422, 485
UI Our standard version available
body color Ivory, yellow
Product size and weight 340 x 700 x 450 mm / 25 Kg (changeable)
Quotation inquiry
